| Place of Origin: | CHINA |
| Μάρκα: | IKP |
| Πιστοποίηση: | CE/UL/REACH/ROHS |

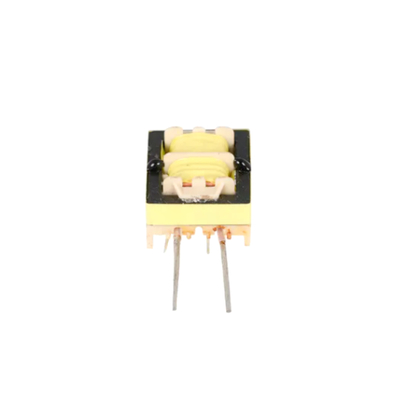

| Model Number: | IKP-HF-RM140000-001R |
| Minimum Order Quantity: | 1000 |
|---|---|
| Τιμή: | 0.93-0.98 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |
| Αριθμός μοντέλου | Τερματικό Ακίδες |
Διάσταση (mm) | Ηλεκτρική παράμετρος | |||

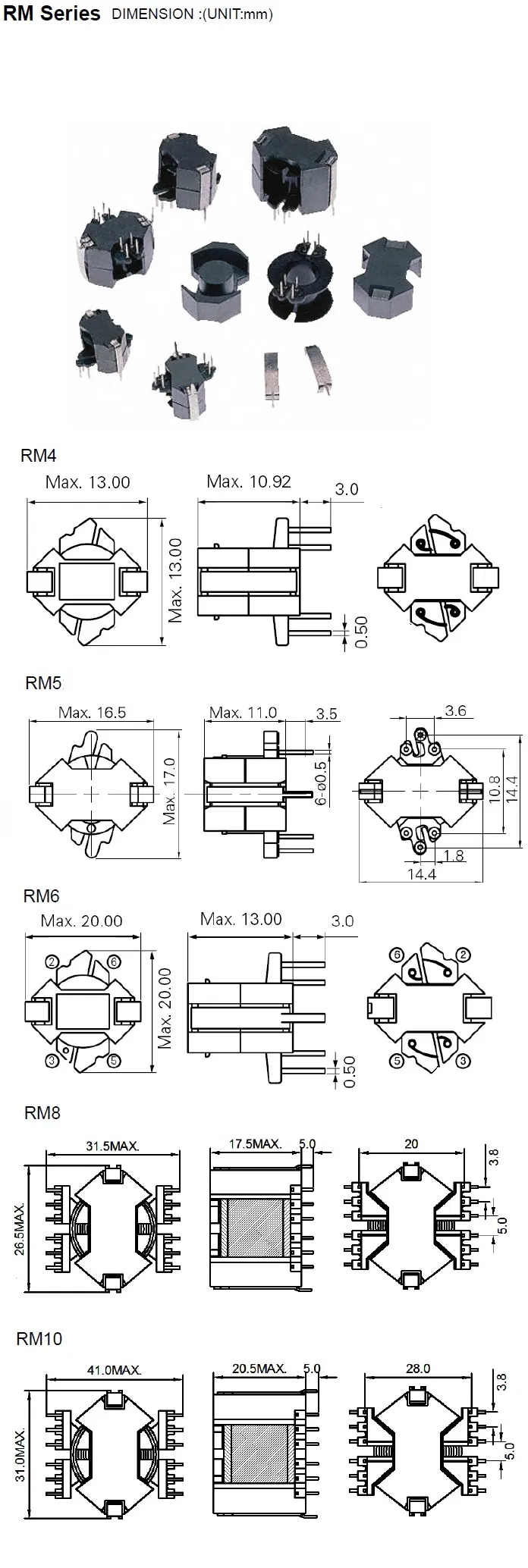

| A | B | C | Επαγωγή | Ισχύς εξόδου (W) | ||
| RM-4 | 6 | 7.8 | 13.5 | 12.6 | 15.0uH/3.5mH | 1.0-5.0 |
| RM-5 | 6 | 7.2 | 15.5 | 16.0 | 25.0uH8.8/mH | 1.0-8.0 |
| RM-6 | 6 | 13.5 | 18.5 | 20.7 | 65.0uH/99.0Mh | 1.0-9.0 |
| RM-6-1 | 8 | 12.8 | 18.5 | 18.5 | 65.0uH/120.0mH | 1.0-14.0 |
| RM-8 | 12 | 12.1 | 23.5 | 24.0 | 55.0uH/1.0H | 1.0-20.0 |
| RM-8-1 | 12 | 17.5 | 29.8 | 23.4 | 8.0uH/1.5H | 1.0-20.0 |
| RM-10 | 12 | 13.4 | 28.5 | 28.1 | 100.0uH/2.5mH | 1.0-25.0 |
| RM-10-1 | 12 | 19.6 | 39.4 | 23.3 | 55.0uH/2.5mH | 1.0-25.0 |
| RM-12 | 12 | 17.7 | 38.5 | 38.5 | 85.0uH/3.0mH | 1.0-30.0 |
| RM-12-1 | 12 | 23.7 | 45.2 | 28.4 | 95.0uH/3.0H | 1.0-30.0 |
| RM-14 | 12 | 29.0 | 48.4 | 31.4 | 90.0uH/5.0H | 1.0-50.0 |
