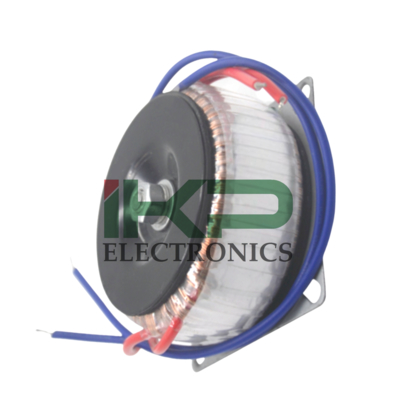

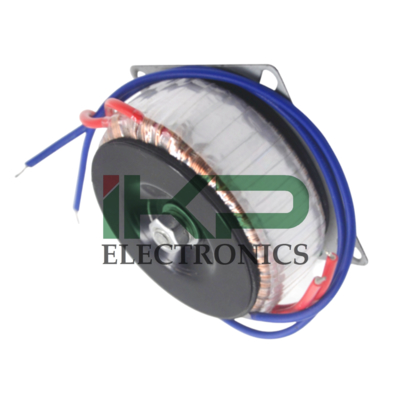

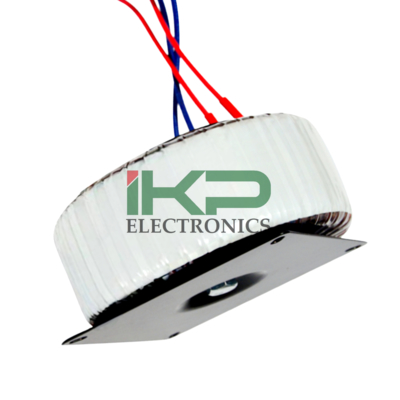

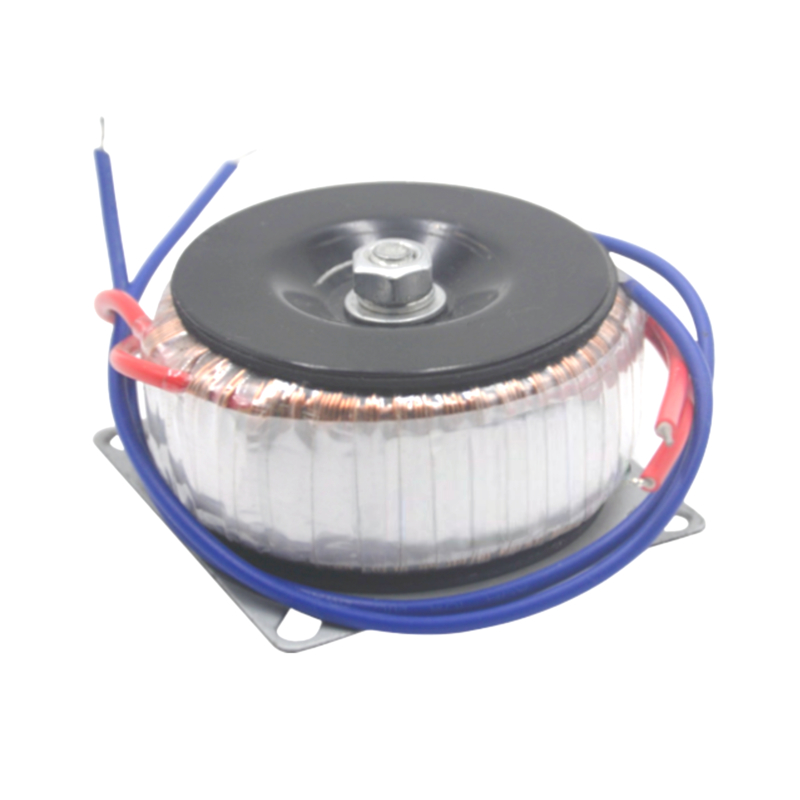

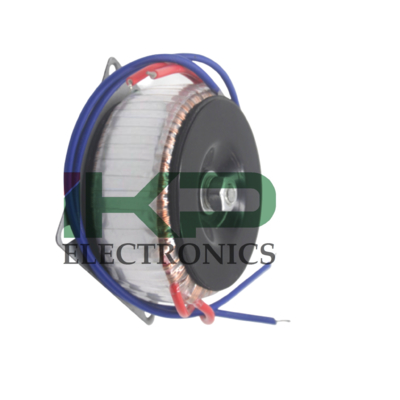

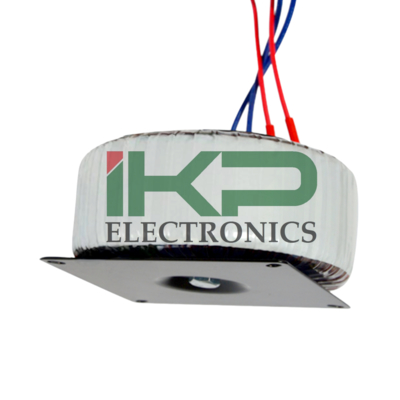

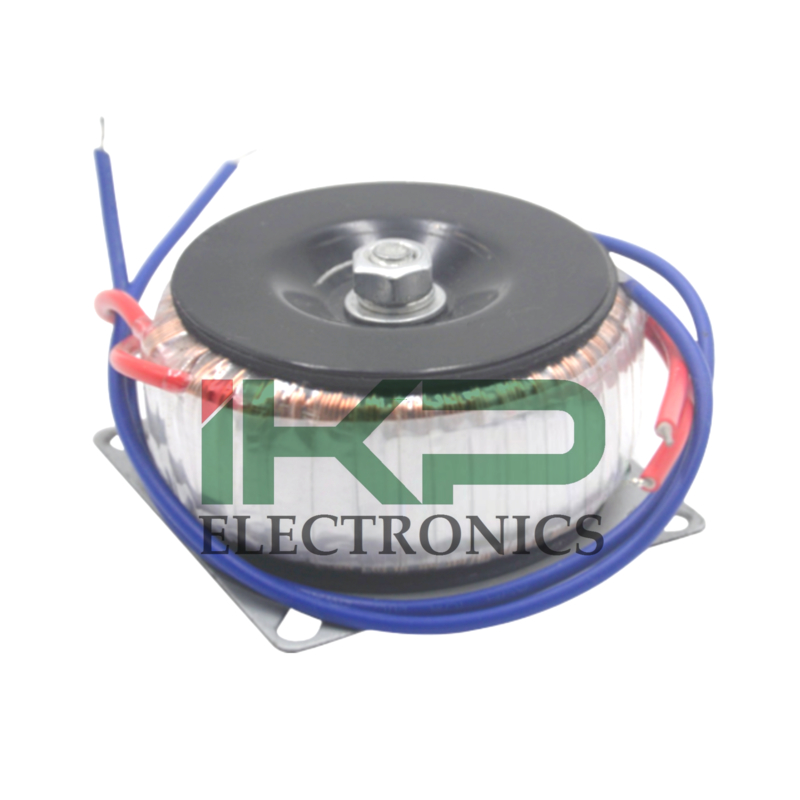

5200VA Rated Power 98.3% Efficiency 245*150 mm Outside Dimension D*H 31.2KG Weight Toroidal Transformer for Wind Power UL/CE/RoHS/CQC

5200VA Rated Power 98.3% Efficiency 245*150 mm Outside Dimension D*H 31.2KG Weight Toroidal Transformer for Wind Power UL/CE/RoHS/CQC

    • 5200VA Rated Power 98.3% Efficiency 245*150 mm Outside Dimension D*H 31.2KG Weight Toroidal Transformer for Wind Power UL/CE/RoHS/CQC
    • 5200VA Rated Power 98.3% Efficiency 245*150 mm Outside Dimension D*H 31.2KG Weight Toroidal Transformer for Wind Power UL/CE/RoHS/CQC
    • 5200VA Rated Power 98.3% Efficiency 245*150 mm Outside Dimension D*H 31.2KG Weight Toroidal Transformer for Wind Power UL/CE/RoHS/CQC
    • 5200VA Rated Power 98.3% Efficiency 245*150 mm Outside Dimension D*H 31.2KG Weight Toroidal Transformer for Wind Power UL/CE/RoHS/CQC
    • 5200VA Rated Power 98.3% Efficiency 245*150 mm Outside Dimension D*H 31.2KG Weight Toroidal Transformer for Wind Power UL/CE/RoHS/CQC
    • 5200VA Rated Power 98.3% Efficiency 245*150 mm Outside Dimension D*H 31.2KG Weight Toroidal Transformer for Wind Power UL/CE/RoHS/CQC
    • 5200VA Rated Power 98.3% Efficiency 245*150 mm Outside Dimension D*H 31.2KG Weight Toroidal Transformer for Wind Power UL/CE/RoHS/CQC

    Λεπτομέρειες:

    Place of Origin: CHINA
    Μάρκα: IKP
    Πιστοποίηση: CE/UL/REACH/ROHS
    Model Number: Toroidal Transformer

    Πληρωμής & Αποστολής Όροι:

    Minimum Order Quantity: 1000
    Τιμή: 3.00-20.00
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Επικοινωνήστε
    Λεπτομερής Περιγραφή Προϊόντος

    Specifications:

    • Power range: 1000VA to 5200VA

    • Phase: Single / Three phase

    • Input / Output: Customized

    • Insulation Class: UL class B, F, H, N (optional)

    • Isolation: 4KV (Hi-pot)

    • Easy to change diameter and height of the core

    • Customized specifications are welcome

    Rated Power

            (VA)

        Efficiency

            (%)

    		    Outside Dimension                  D*H(mm)

         Weight

           (kg)

    		                Approval
    1000 97.0 175*85 9.1 UL/CE/RoHS/CQC
    1500 97.0 195*85 11.5 UL/CE/RoHS/CQC
    2000 97.5 210*90 14.7 UL/CE/RoHS/CQC
    2500 97.5 210*100 16.7 UL/CE/RoHS/CQC
    3000 97.5 215*105 17.7 UL/CE/RoHS/CQC
    3500 97.7 230*115 21.8 UL/CE/RoHS/CQC
    4800 98.0 245*150 31.2 UL/CE/RoHS/CQC
    5200 98.3 245*150 31.2 UL/CE/RoHS/CQC



    ◆We can design and manufacture customized part with specific requirement
